1886140000 | Weidmüller

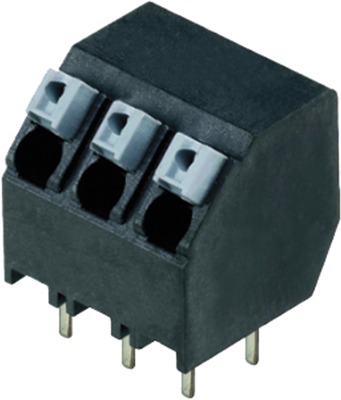

PCB terminal, 5 pole, pitch 7.5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1886140000
Order No.: 09H1746
EAN: 4032248491070
MPN:
1886140000
LSF-SMT 7.50/05/135 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.7136 €
50 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1886140000, WEIDMÜLLER
Printed circuit board terminals, 7.50 mm, number of poles: 5, 135°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

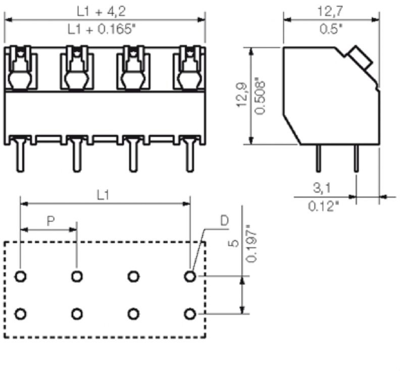

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Pin number | 5 pole | |
| Height | 16.4 mm | |
| Colour | black | |
| Rated current | 10 A | |
| Cable cross-section | 0.13-1.5 mm² | |
| Connection | spring-clamp connection | |
| Assembly | THT/THR | |
| AWG cross-section | AWG 28-14 | |
| Depth | 12.7 mm | |
| Rated voltage | 500 V | |
| Width | 34.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Bar with 16 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
