1884810000 | Weidmüller

PCB terminal, 10 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1884810000

Order No.: 52P4875
EAN: 4032248489381
MPN:
1884810000
LSF-SMT 5.08/10/135 1.5SN BK TU

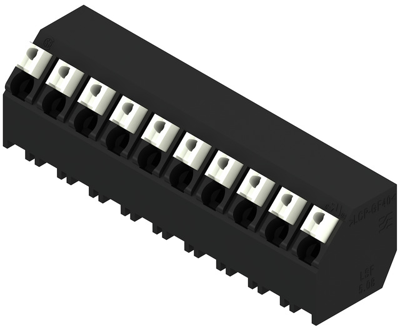

1884810000 Weidmüller PCB Terminal Blocks Image 1
1884810000 Weidmüller PCB Terminal Blocks Image 2

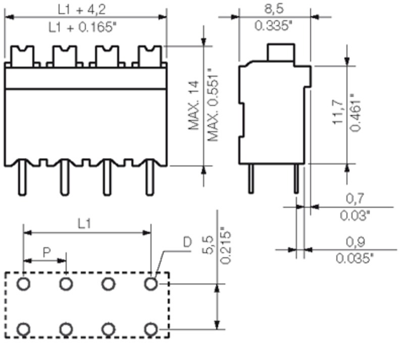

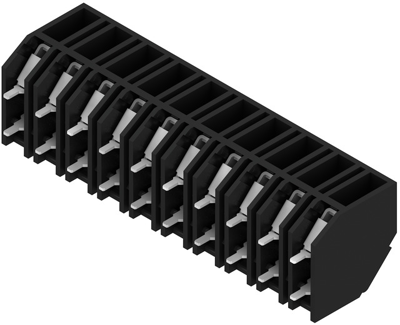

1884810000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
4.4149 € *
Available in 5 Days: 77 pcs. - if ordered today
Total Price:
158.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
36 pcs.
4.4149 €

PCB terminal, 1884810000, WEIDMÜLLER

Printed circuit board terminals, 5.08 mm, number of poles: 10, 135°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².

Features

  • PCB terminal for fully automatic assembly in reflow soldering
  • With push-in conductor connection system
  • Conductor inserted and slider operated in same direction
Technical specifications
Filter Property Value
Connection spring-clamp connection
Height 14.4 mm
Grid 5.08 mm
Rated voltage 300 V
Depth 12.7 mm
Width 49.92 mm
Colour black
Cable cross-section 0.13-1.5 mm²
AWG cross-section AWG 28-14
Pin number 10 pole
Rated current 12 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
