1884750000 | Weidmüller
PCB terminal, 4 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1884750000
Order No.: 52P4869
EAN: 4032248489329
MPN:
1884750000
LSF-SMT 5.08/04/135 1.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
1.2852 € *
Available in 6 Days: 56 pcs. - if ordered today
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1662 €
50 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1884750000, WEIDMÜLLER
Printed circuit board terminals, 5.08 mm, number of poles: 4, 135°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

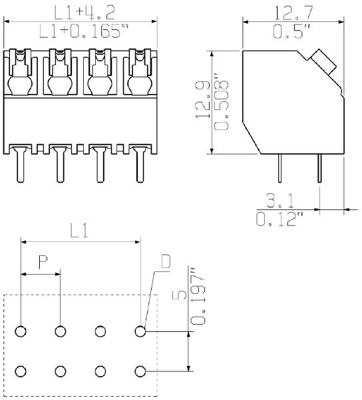

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 12.7 mm | |
| Rated current | 12 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-1.5 mm² | |
| Height | 14.4 mm | |
| Pin number | 4 pole | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 28-14 | |
| Colour | black | |
| Width | 19.44 mm | |
| Connection | spring-clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
