1876360000 | Weidmüller

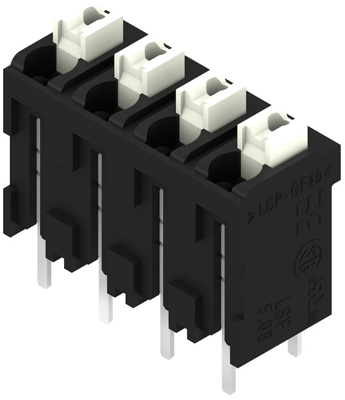

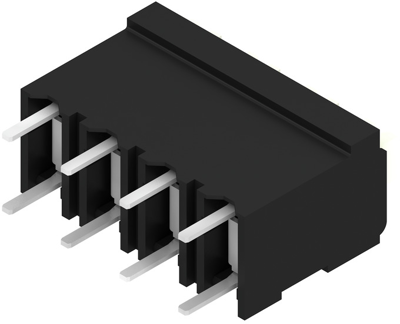

PCB terminal, 4 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1876360000
Order No.: 52P4540
EAN: 4032248466825
MPN:
1876360000
LSF-SMT 5.08/04/180 3.5SN BK RL
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
1.5470 € *
Available in 6 Days: 875 pcs. - if ordered today
PCB terminal, 1876360000, WEIDMÜLLER
Printed circuit board terminals, 5.08 mm, number of poles: 4, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

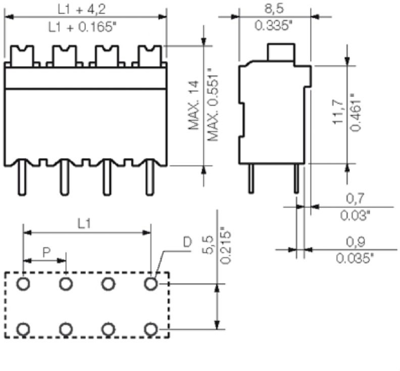

Technical specifications
| Depth | 7.8 mm | |
| Height | 17.5 mm | |
| Rated voltage | 300 V | |
| Pin number | 4 pole | |
| Cable cross-section | 0.13-1.5 mm² | |
| Width | 19.44 mm | |
| AWG cross-section | AWG 28-14 | |
| Grid | 5.08 mm | |
| Connection | spring-clamp connection | |
| Rated current | 12 A | |
| Colour | black |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
