1876250000 | Weidmüller
PCB terminal, 5 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1876250000
Order No.: 52P4529
EAN: 4032248466726
MPN:
1876250000
LSF-SMT 5.08/05/180 3.5SN BK RL
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 6 Weeks
PCB terminal, 1876250000, WEIDMÜLLER

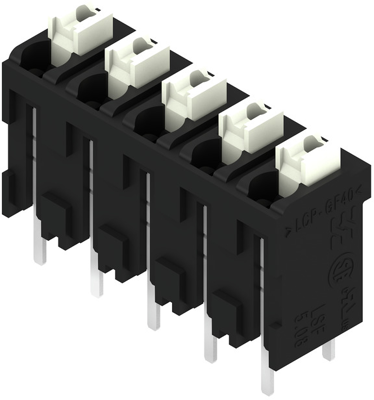

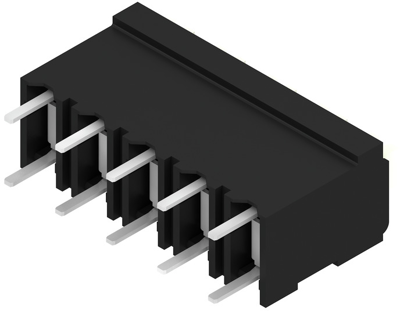

Printed circuit board terminals, 5.08 mm, number of poles: 5, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| AWG cross-section | AWG 28-14 | |

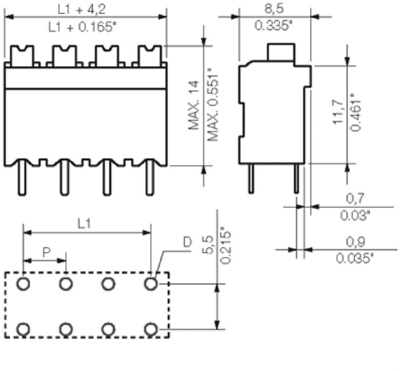

| Depth | 7.8 mm | |
| Height | 17.5 mm | |
| Assembly | THT/THR | |
| Grid | 5.08 mm | |
| Colour | black | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-1.5 mm² | |
| Connection | spring-clamp connection | |
| Width | 24.52 mm | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
