1876000000 | Weidmüller

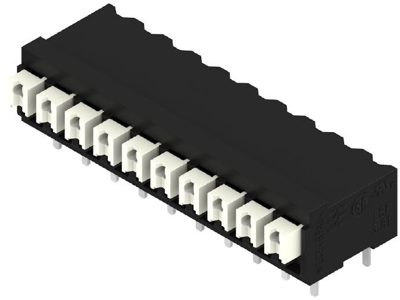

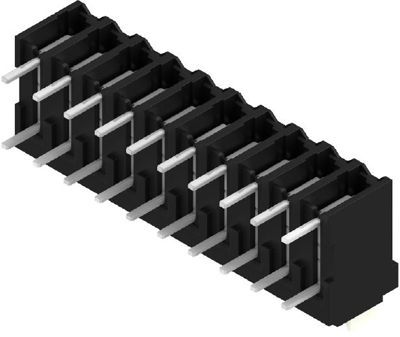

PCB terminal, 10 pole, pitch 3.81 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1876000000
Order No.: 52P4504
EAN: 4032248466337
MPN:
1876000000
LSF-SMT 3.81/10/90 3.5SN BK RL
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 6 Weeks
PCB terminal, 1876000000, WEIDMÜLLER
Printed circuit board terminals, 3.81 mm, number of poles: 10, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

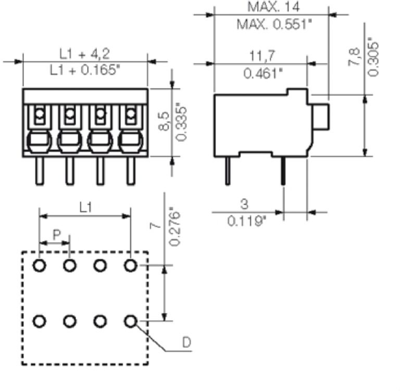

Technical specifications
| Colour | black | |
| Depth | 14.75 mm | |
| AWG cross-section | AWG 28-14 | |
| Rated current | 12 A | |
| Grid | 3.81 mm | |
| Width | 38.49 mm | |
| Height | 13.15 mm | |
| Cable cross-section | 0.13-1.5 mm² | |
| Pin number | 10 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
