1870380000 | Weidmüller
PCB terminal, 13 pole, pitch 3.5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1870380000
Order No.: 52P4113
EAN: 4032248447633
MPN:
1870380000
LSF-SMT 3.50/13/90 3.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
4.2483 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.25 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2483 €
10 pcs.
3.9508 €
50 pcs.
3.5581 €
*incl. VAT plus shipping costs
Subject to prior sale

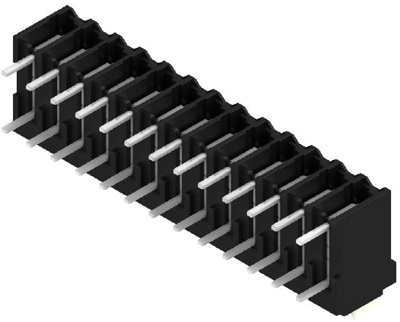

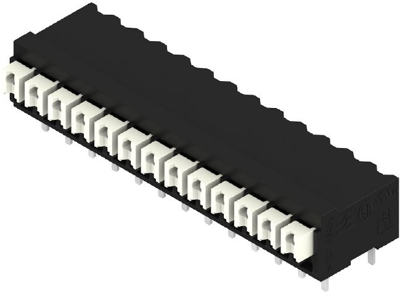

PCB terminal, 1870380000, WEIDMÜLLER
Printed circuit board terminals, 3.50 mm, number of poles: 13, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

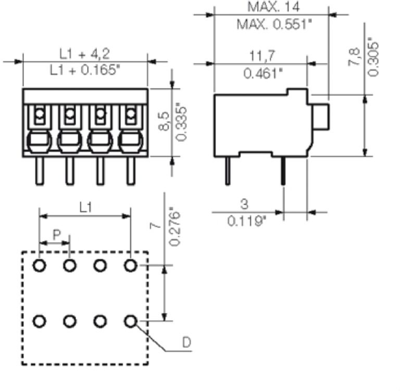

Technical specifications
| Depth | 14.75 mm | |
| Connection | spring-clamp connection | |
| Width | 46.2 mm | |
| Grid | 3.5 mm | |
| Height | 12 mm | |
| Pin number | 13 pole | |
| AWG cross-section | AWG 28-14 | |
| Cable cross-section | 0.13-1.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Colour | black |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
