1870210000 | Weidmüller
PCB terminal, 2 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1870210000
Order No.: 52P4096
EAN: 4032248447282
MPN:
1870210000
LSF-SMT 5.08/02/180 1.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.6188 €
50 pcs.
0.5474 €
100 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale

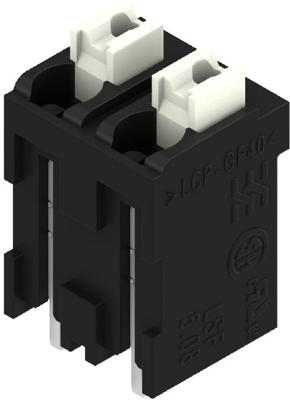

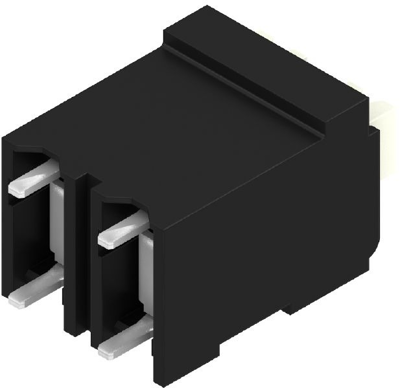

PCB terminal, 1870210000, WEIDMÜLLER
Printed circuit board terminals, 5.08 mm, number of poles: 2, 180°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

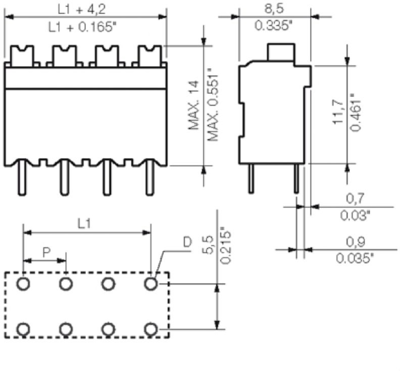

Technical specifications
| Colour | black | |
| Depth | 7.8 mm | |
| Rated current | 12 A | |
| Connection | spring-clamp connection | |
| Grid | 5.08 mm | |
| Height | 15.5 mm | |
| AWG cross-section | AWG 28-14 | |
| Width | 9.28 mm | |
| Pin number | 2 pole | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-1.5 mm² |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
