1845240000 | Weidmüller

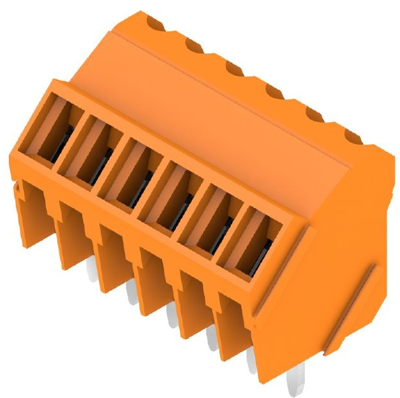

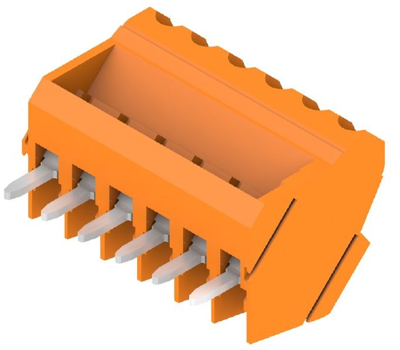

PCB terminal, 6 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, orange, 1845240000
Order No.: 52P3258
EAN: 4032248357956
MPN:
1845240000
LM 3.50/06/135 3.2SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
3.3320 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3320 €
10 pcs.
3.0940 €
50 pcs.
2.7965 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1845240000, Weidmüller
PCB terminal, 3.50 mm, pole number: 6, 135°, 3.2 mm, orange, clamping yoke connection, 2.08 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

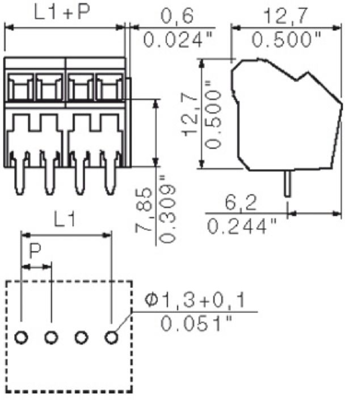

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 21.6 mm | |
| Colour | orange | |
| Height | 15.9 mm | |
| Cable cross-section | 0.08-2.08 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 6 pole | |
| Grid | 3.5 mm | |
| Depth | 12.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
