1845110000 | Weidmüller

PCB terminal, 12 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, orange, 1845110000

Order No.: 52P3226
EAN: 4032248357925
MPN:
1845110000
LM 3.50/12/90 3.2SN OR BX

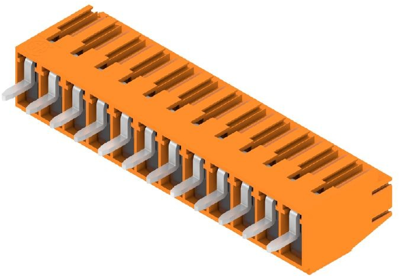

1845110000 Weidmüller PCB Terminal Blocks Image 1

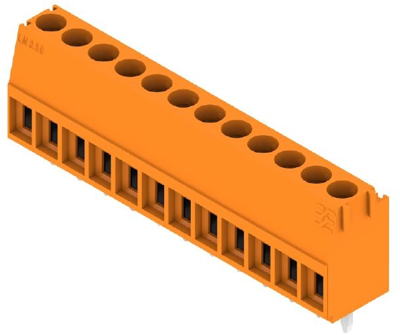

1845110000 Weidmüller PCB Terminal Blocks Image 2

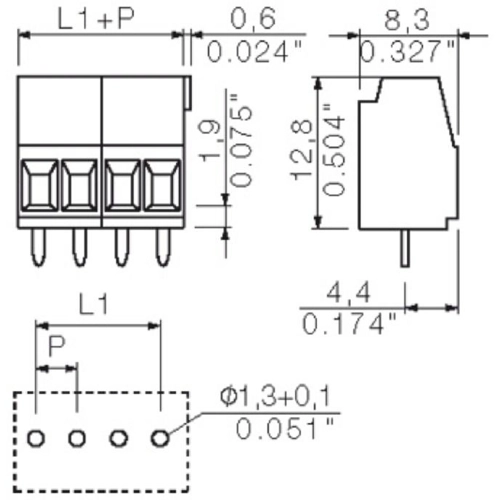

1845110000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
4.6053 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.6053 €

Print clamp, 1845110000, Weidmüller

PCB terminal, 3.50 mm, no. of poles: 12, 90°, 3.2 mm, orange, clamping yoke connection, 2.08 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Depth 8.3 mm
Grid 3.5 mm
Assembly THT
Connection screw connection
Rated current 10 A
Pin number 12 pole
Width 42.6 mm
Height 16 mm
AWG cross-section AWG 28-14
Colour orange
Rated voltage 300 V
Cable cross-section 0.08-2.08 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
