1839230000 | Weidmüller

PCB terminal, 7 pole, pitch 12.7 mm, AWG 22-6, 65 A, screw connection, pebble gray, 1839230000

Order No.: 52P2868
EAN: 4032248349739
MPN:
1839230000
LUP 12.70/07/90 3.2SN GY BX
Series: OMNIMATE Power - Serie LUP
Weidmüller

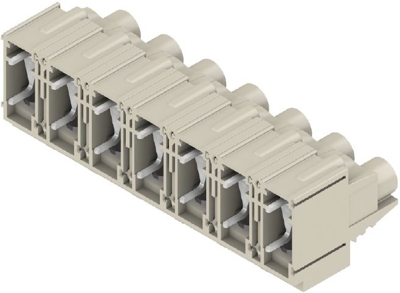

1839230000 Weidmüller PCB Terminal Blocks Image 1

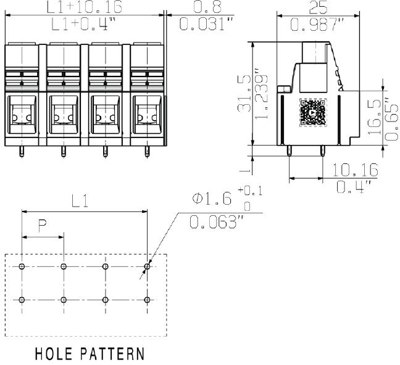

1839230000 Weidmüller PCB Terminal Blocks Image 2

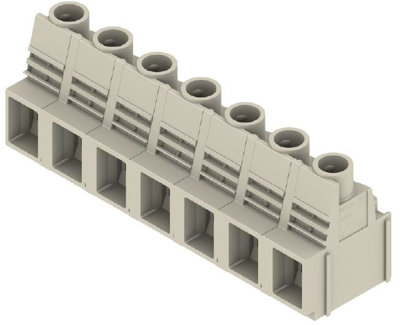

1839230000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Print
Key Specification:
Pin number 7 pole
Grid 12.7 mm
Cable cross-section 0.13-16 mm²
AWG cross-section AWG 22-6

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.3764 € *
Available in 5 Days: 160 pcs. - if ordered today
Total Price:
170.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
15 pcs.
11.3764 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 1839230000, Weidmüller

PCB terminal, 12.70 mm, no. of poles: 7, 90°, 3.2 mm, pebble grey, clamping yoke connection, 16 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Depth 25.1 mm
AWG cross-section AWG 22-6
Rated current 65 A
Height 34.7 mm
Colour pebble gray
Assembly THT
Width 87.16 mm
Grid 12.7 mm
Rated voltage 600 V
Connection screw connection
Pin number 7 pole
Cable cross-section 0.13-16 mm²
Articles of same specification 0
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
