1839190000 | Weidmüller

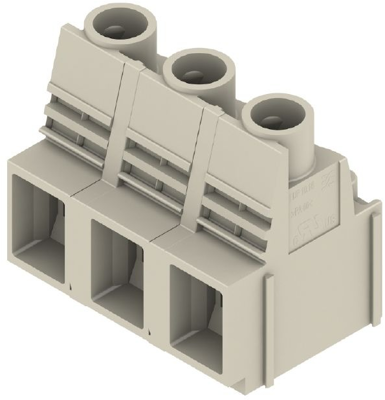

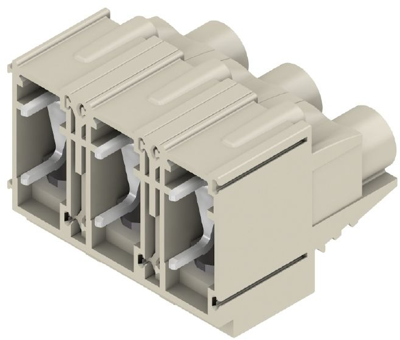

PCB terminal, 3 pole, pitch 12.7 mm, AWG 22-6, 65 A, screw connection, pebble gray, 1839190000
Order No.: 52P2866
EAN: 4032248349296
MPN:
1839190000
LUP 12.70/03/90 3.2SN GY BX
Series: OMNIMATE Power - Serie LUP
Unit Price (€ / pc.)
11.6501 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
11.65 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6501 €
10 pcs.
10.8171 €
50 pcs.
9.8532 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1839190000, Weidmüller
PCB terminal, 12.70 mm, no. of poles: 3, 90°, 3.2 mm, pebble gray, clamping yoke connection, 16 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

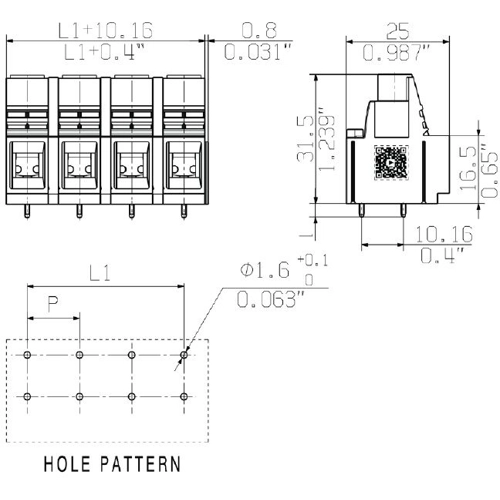

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 12.7 mm | |
| Assembly | THT | |
| Colour | pebble gray | |
| Depth | 25.1 mm | |
| Cable cross-section | 0.13-16 mm² | |
| Rated current | 65 A | |
| Height | 34.7 mm | |
| Pin number | 3 pole | |
| AWG cross-section | AWG 22-6 | |
| Connection | screw connection | |
| Rated voltage | 600 V | |
| Width | 36.36 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
