1826210000 | Weidmüller
PCB terminal, 2 pole, pitch 7.62 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1826210000
Order No.: 09H1784
EAN: 4032248328901
MPN:
1826210000
LSF-SMT 7.62/02/180 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.7021 € *
Available in 6 Days: 230 pcs. - if ordered today
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6545 €
50 pcs.
0.5831 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
Subject to prior sale

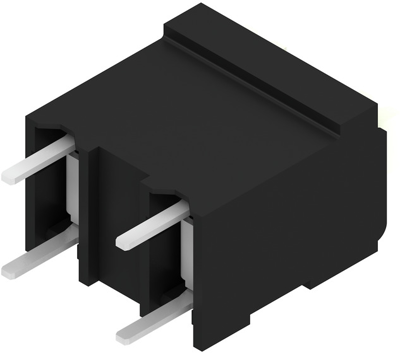

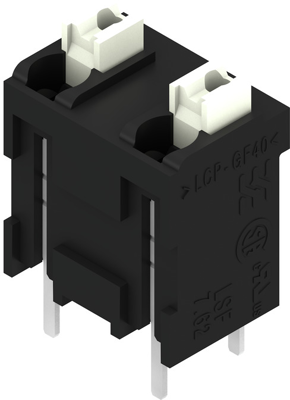

PCB terminal, 1826210000, WEIDMÜLLER
Printed circuit board terminals, 7.62 mm, number of poles: 2, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

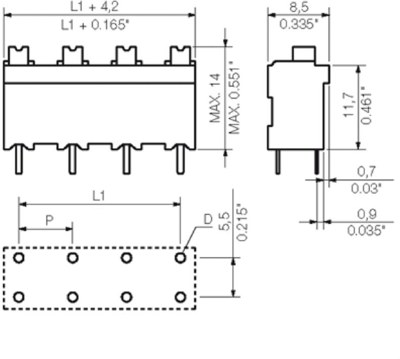

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| AWG cross-section | AWG 28-14 | |
| Depth | 7.8 mm | |
| Height | 17.5 mm | |
| Assembly | THT/THR | |
| Grid | 7.62 mm | |
| Colour | black | |
| Rated voltage | 500 V | |
| Cable cross-section | 1.5 mm² | |
| Connection | spring-clamp connection | |
| Width | 7 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Bar with 46 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
