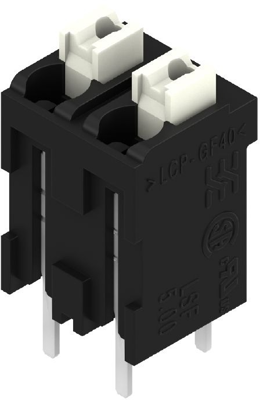

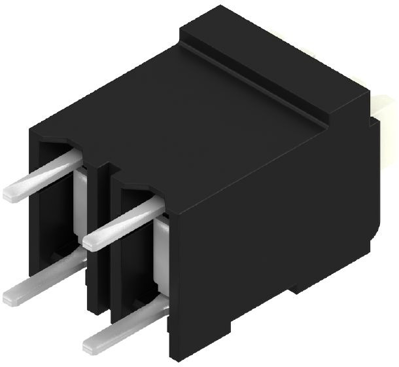

1825960000 | Weidmüller
PCB terminal, 2 pole, pitch 5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825960000
Order No.: 09H1680
EAN: 4032248328673
MPN:
1825960000
LSF-SMT 5.00/02/180 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.6783 € *
Available: 40 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
0.68 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6783 €
300 pcs.
0.5831 €
1500 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1825960000, WEIDMÜLLER
Printed circuit board terminals, 5.00 mm, number of poles: 2, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

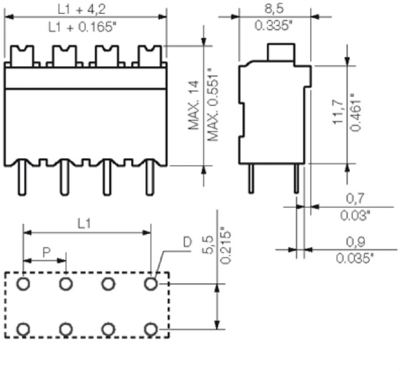

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 9.2 mm | |
| Colour | black | |
| Height | 17.5 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.13-1.5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Depth | 7.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bar with 9 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
