1825710000 | Weidmüller

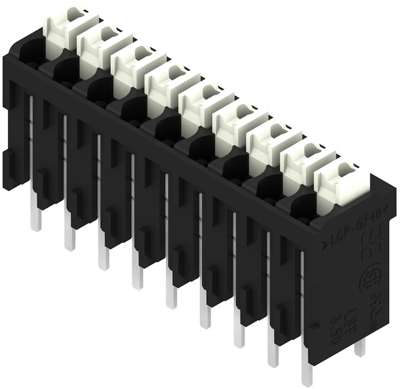

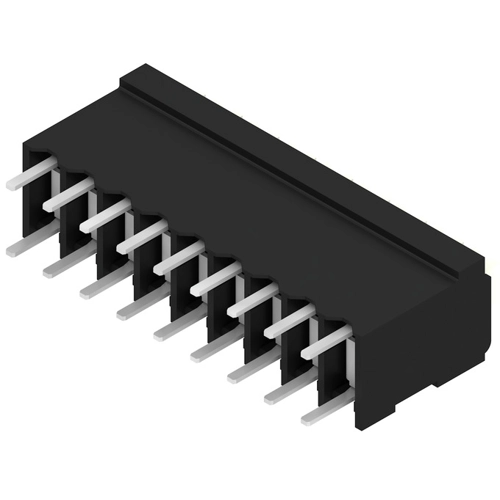

PCB terminal, 9 pole, pitch 3.5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1825710000
Order No.: 09H1594
EAN: 4032248328307
MPN:
1825710000
LSF-SMT 3.50/09/180 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
2.9750 € *
Available in 6 Days: 85 pcs. - if ordered today
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7489 €
50 pcs.
2.4990 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1825710000, WEIDMÜLLER

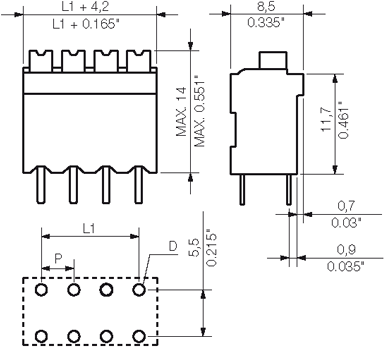

Printed circuit board terminals, 3.50 mm, number of poles: 9, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| AWG cross-section | AWG 28-14 | |
| Depth | 7.8 mm | |
| Height | 17.5 mm | |
| Assembly | THT/THR | |
| Grid | 3.5 mm | |
| Colour | black | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-1.5 mm² | |
| Connection | spring-clamp connection | |
| Width | 32.2 mm | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Bar with 17 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
