1786440000 | Weidmüller
PCB terminal, 10 pole, pitch 7.62 mm, AWG 26-10, 30 A, screw connection, orange, 1786440000
Order No.: 52P1466
EAN: 4032248201075
MPN:
1786440000
TOP4GS10/90 7.62 OR
Series: OMNIMATE Signal - Serie TOP4G
Unit Price (€ / pc.)
13.9587 € *
Available in 5 Days: 150 pcs. - if ordered today
Print clamp, 1786440000, Weidmüller
PCB terminal, 7.62 mm, no. of poles: 10, 90°, 3.5 mm, orange, TOP connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

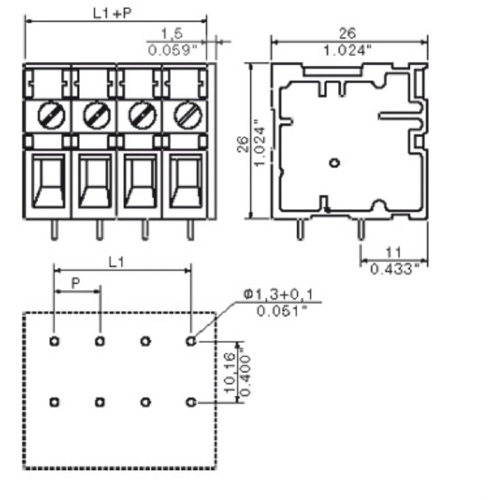

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Assembly | THT | |
| Colour | orange | |
| Depth | 26 mm | |
| Cable cross-section | 0.13-6.0 mm² | |
| Rated current | 30 A | |
| Height | 29.5 mm | |
| Pin number | 10 pole | |
| AWG cross-section | AWG 26-10 | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Width | 77.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
