1786290000 | Weidmüller

PCB terminal, 12 pole, pitch 6.35 mm, AWG 26-10, 30 A, screw connection, orange, 1786290000

Order No.: 52P1462
EAN: 4032248200924
MPN:
1786290000
TOP4GS12/180 6.35 OR
Series: OMNIMATE Signal - Serie TOP4G
Weidmüller
1786290000 Weidmüller PCB Terminal Blocks Image 1

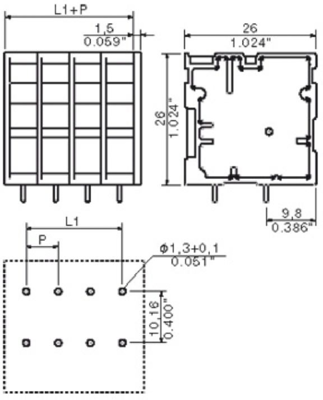

1786290000 Weidmüller PCB Terminal Blocks Image 2
Image may differ
Print
Key Specification:
Pin number 12 pole
Grid 6.35 mm
Cable cross-section 0.13-6.0 mm²
AWG cross-section AWG 26-10

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
21.42 € *
Available in 5 Days: 150 pcs. - if ordered today
Total Price:
214.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
21.42 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 1786290000, Weidmüller

PCB terminal, 6.35 mm, no. of poles: 12, 180°, 3.5 mm, orange, TOP connection, 6 mm², Box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Height 29.5 mm
Grid 6.35 mm
Depth 26 mm
Pin number 12 pole
Connection screw connection
Colour orange
Rated current 30 A
Cable cross-section 0.13-6.0 mm²
Width 77.7 mm
Rated voltage 300 V
AWG cross-section AWG 26-10
Articles of same specification 0
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
