1769760000 | Weidmüller
PCB terminal, 48 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 1769760000
Order No.: 52P0824
EAN: 4032248117130
MPN:
1769760000
LM3R 5.08/48/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
19.8611 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
19.86 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8611 €
10 pcs.
18.4688 €
50 pcs.
17.0051 €
*incl. VAT plus shipping costs
**Subject to prior sale

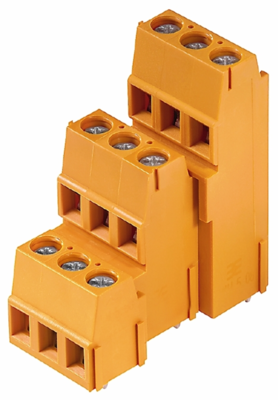

Print clamp, 1769760000, Weidmüller

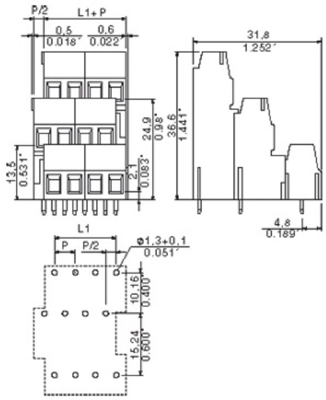

PCB terminal, 5.08 mm, no. of poles: 48, 90°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-14 | |
| Width | 84.82 mm | |
| Colour | orange | |
| Height | 40.1 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 48 pole | |
| Grid | 5.08 mm | |
| Depth | 31.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
