1769170000 | Weidmüller
PCB terminal, 22 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, black, 1769170000
Order No.: 52P0786
EAN: 4032248116003
MPN:
1769170000
LM2N 5.08/22/90 3.5SN BK BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
7.6279 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
7.63 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6279 €
10 pcs.
7.0805 €
50 pcs.
6.4498 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1769170000, Weidmüller

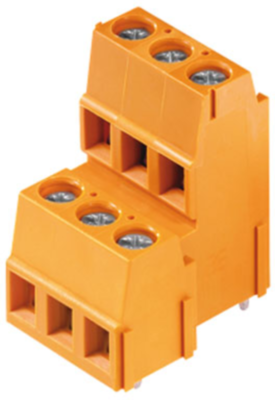

PCB terminal, 5.08 mm, no. of poles: 22, 90°, 3.5 mm, black, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

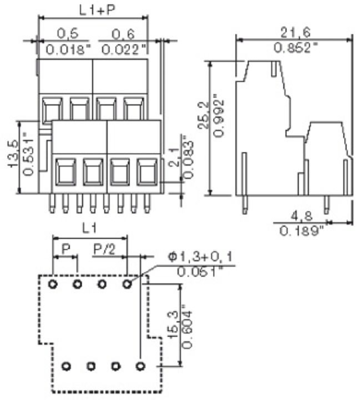

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 22 pole | |
| Depth | 21.6 mm | |
| Rated voltage | 300 V | |
| Grid | 5.08 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Height | 28.7 mm | |
| Width | 59.42 mm | |
| Connection | screw connection | |
| Rated current | 15 A | |
| Colour | black | |
| AWG cross-section | AWG 24-14 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
