1764950000 | Weidmüller

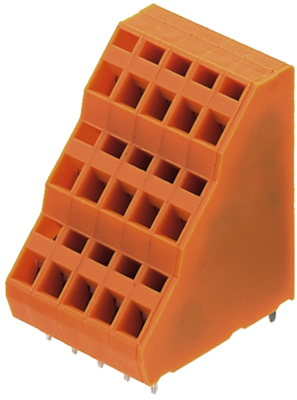

PCB terminal, 18 pole, pitch 5.08 mm, AWG 26-14, 10 A, spring-clamp connection, orange, 1764950000
Order No.: 52P0695
EAN: 4032248102860
MPN:
1764950000
LM3RZF 5.08/18/135 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
9.8175 € *
Standard delivery time from the manufacturer is: 9 Weeks
Print clamp, 1764950000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 18, 135°, 3.5 mm, orange, tension clamp connection, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Assembly | THT | |
| Colour | orange | |
| Depth | 32.2 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Rated current | 10 A | |
| Height | 40.1 mm | |
| Pin number | 18 pole | |
| AWG cross-section | AWG 26-14 | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V | |
| Width | 31.18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
