1760500000 | Weidmüller

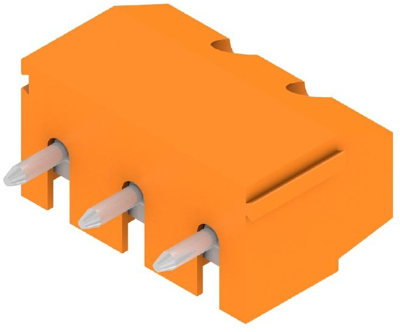

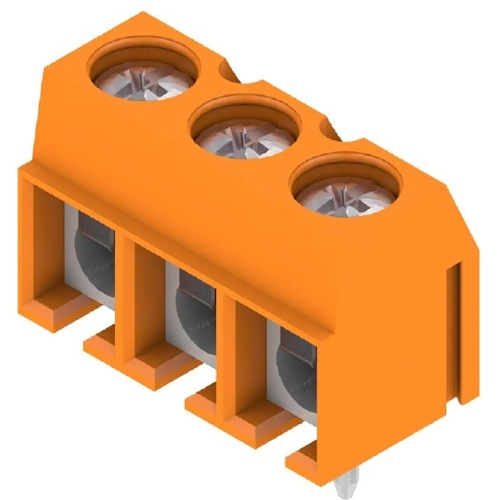

PCB terminal, 3 pole, pitch 5.08 mm, AWG 26-14, 15 A, screw connection, orange, 1760500000
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4522 €
50 pcs.
0.4046 €
100 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1760500000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 3, 90°, 3.5 mm, orange, pressure clip connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 8 mm | |
| AWG cross-section | AWG 26-14 | |
| Rated current | 15 A | |
| Height | 13.5 mm | |
| Colour | orange | |
| Assembly | THT | |
| Width | 15.84 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Connection | screw connection | |
| Pin number | 3 pole | |
| Cable cross-section | 0.13-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
