1755180000 | Weidmüller

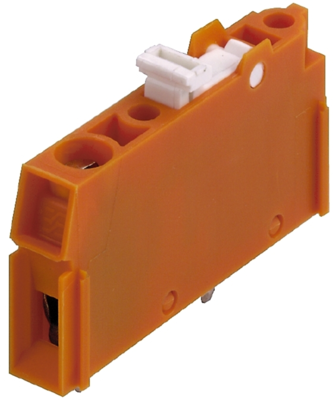

PCB terminal, 1 pole, pitch 5.08 mm, AWG 26-10, 15 A, screw connection, orange, 1755180000
Order No.: 52P0518
EAN: 4032248017133
MPN:
1755180000
LPTR 5.08/01/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LP
Unit Price (€ / pc.)
3.213 € *
Standard delivery time from the manufacturer is: 2 Weeks
Print clamp, 1755180000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 1, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

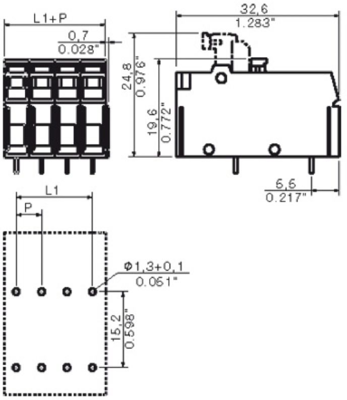

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 22.8 mm | |
| Width | 5.68 mm | |
| Grid | 5.08 mm | |
| Depth | 32.6 mm | |
| Colour | orange | |
| Connection | screw connection | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Pin number | 1 pole | |
| AWG cross-section | AWG 26-10 | |
| Cable cross-section | 0.13-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
