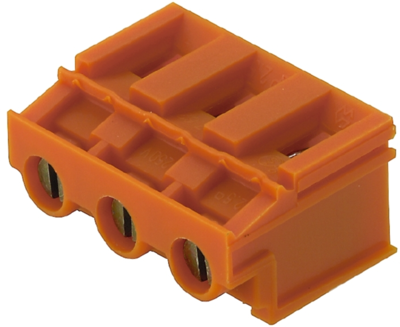

1753900000 | Weidmüller
PCB terminal, 3 pole, pitch 7.62 mm, AWG 26-10, 20 A, screw connection, orange, 1753900000
Order No.: 52P0500
EAN: 4032248065288
MPN:
1753900000
LP 7.62/03/180 3.2SN OR BX
Series: OMNIMATE Signal - Serie LP
Unit Price (€ / pc.)
2.4276 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2372 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1753900000, Weidmüller
PCB terminal, 7.62 mm, no. of poles: 3, 180°, 3.2 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

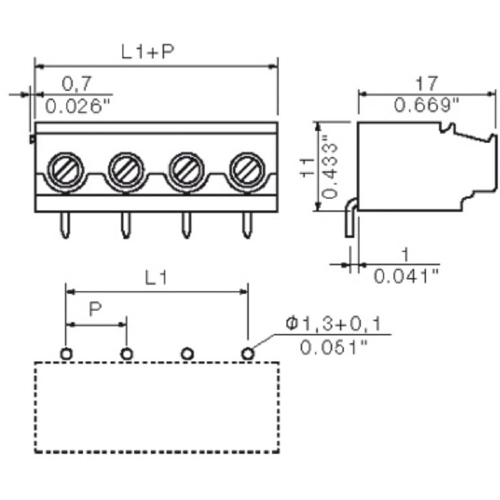

Technical specifications
| Colour | orange | |
| Depth | 19 mm | |
| AWG cross-section | AWG 26-10 | |
| Rated current | 20 A | |
| Grid | 7.62 mm | |
| Width | 23.46 mm | |
| Height | 14.2 mm | |
| Cable cross-section | 0.13-6.0 mm² | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
