1720250000 | Weidmüller
PCB terminal, 5 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, orange, 1720250000
Order No.: 51P9672
EAN: 4008190355142
MPN:
1720250000
LM 3.50/05/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
4.2959 € *
Available in 5 Days: 81 pcs. - if ordered today
Print clamp, 1720250000, Weidmüller

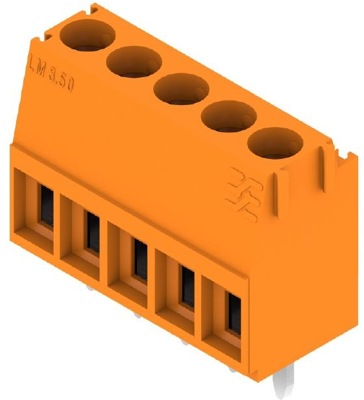

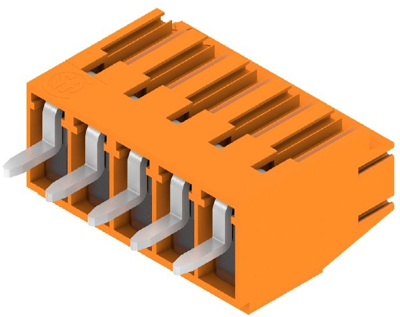

PCB terminal, 3.50 mm, no. of poles: 5, 90°, 3.2 mm, orange, clamping yoke connection, 2.08 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

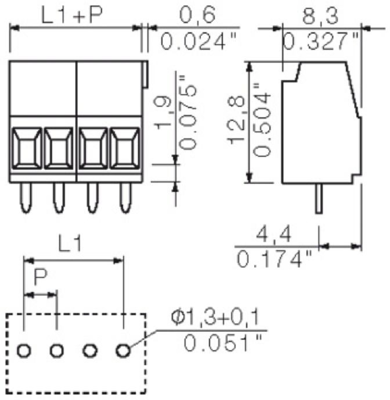

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 18.1 mm | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 28-14 | |
| Rated current | 10 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.08-2.08 mm² | |
| Colour | orange | |
| Pin number | 5 pole | |
| Assembly | THT | |
| Height | 16 mm | |
| Depth | 8.3 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
