1716080000 | Weidmüller
PCB terminal, 2 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 1716080000
Order No.: 51P9510
EAN: 4008190365370
MPN:
1716080000
LM 5.08/02/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
0.5712 € *
Available: 470 pcs.
Available in 6 Days: 2,500 pcs. - if ordered today

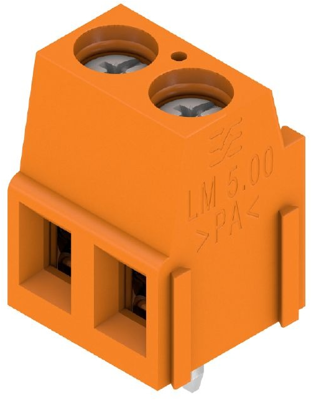

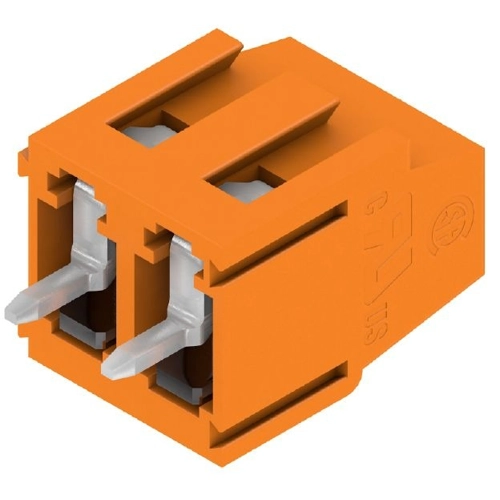

Print clamp, 1716080000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 2, 90°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Assembly | THT | |
| Colour | orange | |
| Depth | 10 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Rated current | 15 A | |
| Height | 17.7 mm | |
| Pin number | 2 pole | |
| AWG cross-section | AWG 24-14 | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Width | 10.71 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
