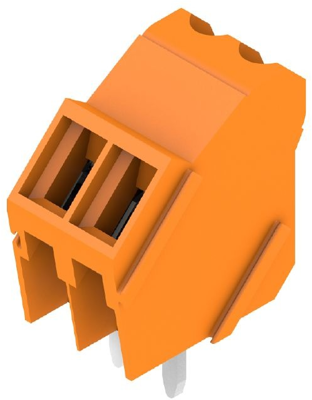

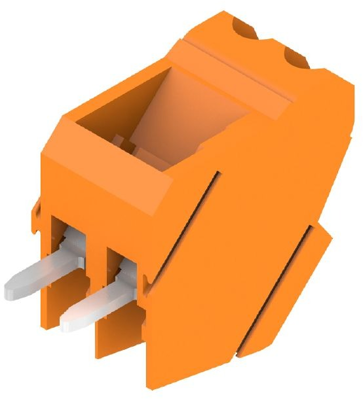

1714980000 | Weidmüller
PCB terminal, 2 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, orange, 1714980000
Order No.: 51P9501
EAN: 4008190337315
MPN:
1714980000
LM 3.50/02/135 3.2SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1714980000, Weidmüller
PCB terminal, 3.50 mm, no. of poles: 2, 135°, 3.2 mm, orange, clamping yoke connection, 2.08 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

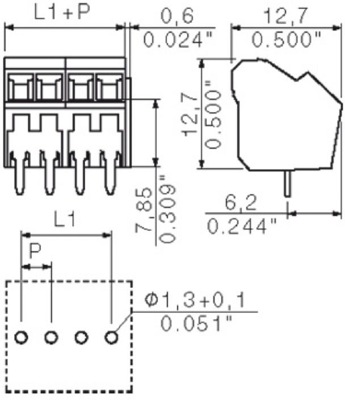

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 12.7 mm | |
| Grid | 3.5 mm | |
| Assembly | THT | |
| Connection | screw connection | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Width | 7.6 mm | |
| Height | 15.9 mm | |
| AWG cross-section | AWG 28-14 | |
| Colour | orange | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.08-2.08 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
