1648300000 | Weidmüller

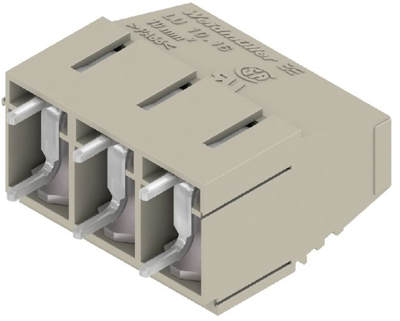

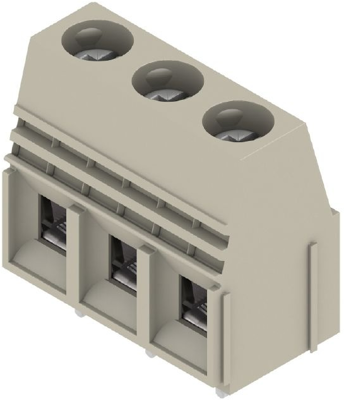

PCB terminal, 3 pole, pitch 10.16 mm, AWG 22-6, 65 A, screw connection, pebble gray, 1648300000
Order No.: 51P8370
EAN: 4008190291167
MPN:
1648300000
LU 10.16/03/90 4.5SN GY BX
Series: OMNIMATE Power - Serie LU
Unit Price (€ / pc.)
9.4843 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
9.48 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4843 €
10 pcs.
8.8298 €
50 pcs.
8.0325 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1648300000, Weidmüller
PCB terminal, 10.16 mm, no. of poles: 3, 90°, 4.5 mm, pebble gray, clamping yoke connection, 16 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

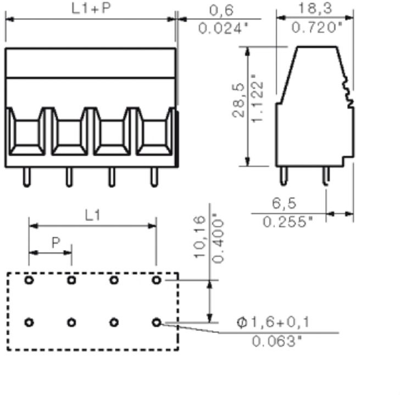

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Grid | 10.16 mm | |
| Cable cross-section | 0.13-16 mm² | |
| AWG cross-section | AWG 22-6 | |
| Rated current | 65 A | |
| Rated voltage | 300 V | |
| Width | 30.48 mm | |
| Height | 33 mm | |
| Depth | 18.3 mm | |
| Connection | screw connection | |
| Assembly | THT | |
| Colour | pebble gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
