1386290000 | Weidmüller

PCB terminal, 5 pole, pitch 15 mm, AWG 20-1, 127 A, screw connection, black, 1386290000

Order No.: 51P2734
EAN: 4050118186178
MPN:
1386290000
LXXX 15.00/05/90F 4.5SN BK BX

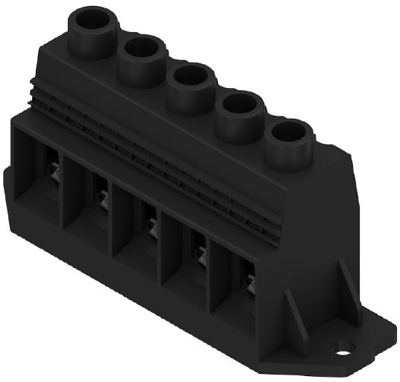

1386290000 Weidmüller PCB Terminal Blocks Image 1

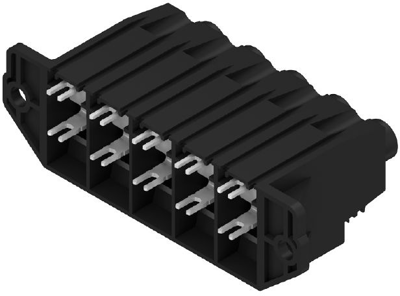

1386290000 Weidmüller PCB Terminal Blocks Image 2

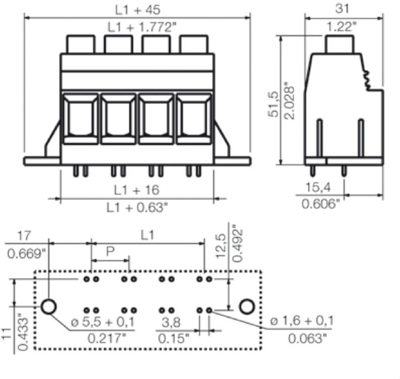

1386290000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
17.3264 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
173.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
17.3264 €

Print clamp, 1386290000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 5, 90°, 4.5 mm, black, clamping yoke connection, 50 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Depth 31 mm
Grid 15 mm
Assembly THT
Connection screw connection
Rated current 127 A
Pin number 5 pole
Width 105 mm
Height 56 mm
AWG cross-section AWG 20-1
Colour black
Rated voltage 600 V
Cable cross-section 0.5-50 mm²
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
