1356890000 | Weidmüller
PCB terminal, 7 pole, pitch 6.35 mm, AWG 26-12, 30 A, screw connection, black, 1356890000
Order No.: 51P2296
EAN: 4050118214666
MPN:
1356890000
LL 6.35/07/90V 5.0SN BK BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
5.4264 € *
Available in 6 Days: 180 pcs. - if ordered today
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4264 €
10 pcs.
5.0456 €
50 pcs.
4.5815 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1356890000, Weidmüller
PCB terminal, 6.35 mm, no. of poles: 7, 90°, 5 mm, black, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 7 pole | |
| Cable cross-section | 0.08-6.0 mm² | |
| Colour | black | |
| Rated current | 30 A | |

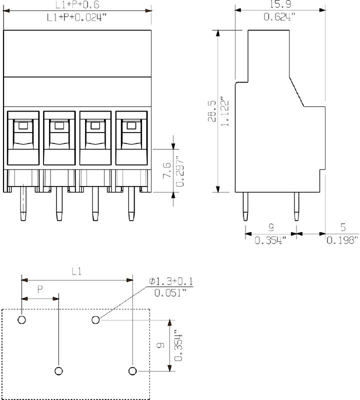

| Width | 45.05 mm | |
| Connection | screw connection | |
| Height | 33.5 mm | |
| Depth | 15.85 mm | |
| Rated voltage | 600 V | |
| AWG cross-section | AWG 26-12 | |
| Grid | 6.35 mm | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
