1331990000 | Weidmüller
PCB terminal, 5 pole, pitch 5 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331990000
Order No.: 51P1521
EAN: 4050118135442
MPN:
1331990000
LMFS 5.00/05/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
2.0825 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0825 €
10 pcs.
1.9278 €
50 pcs.
1.7255 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1331990000, Weidmüller

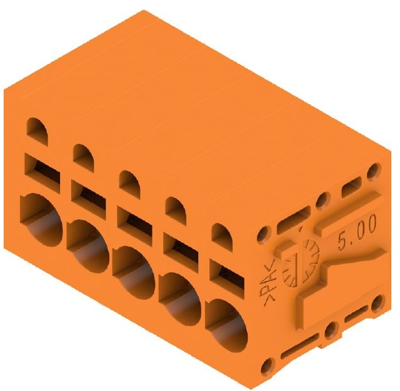

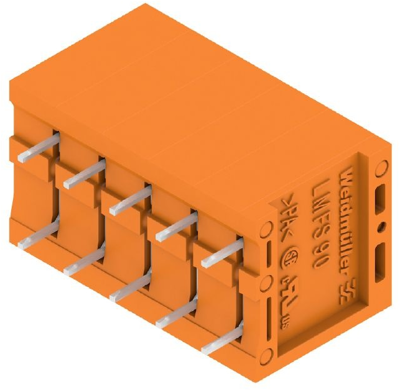

PCB terminal, 5.00 mm, no. of poles: 5, 90°, 3.5 mm, orange, PUSH IN without actuator, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Colour | orange | |
| Depth | 15.2 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 20 A | |
| Grid | 5 mm | |
| Width | 27.7 mm | |
| Height | 18.3 mm | |
| Cable cross-section | 0.12-2.5 mm² | |
| Pin number | 5 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
