1331400000 | Weidmüller

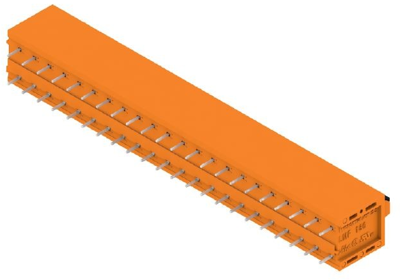

PCB terminal, 22 pole, pitch 5.08 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331400000
Order No.: 51P1474
EAN: 4050118135060
MPN:
1331400000
LMF 5.08/22/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
10.0317 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
10.03 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0317 €
10 pcs.
9.2344 €
50 pcs.
8.4014 €
100 pcs.
7.5446 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1331400000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 22, 180°, 3.5 mm, orange, PUSH IN, 2.5 mm², Box
Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 114.38 mm | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 20 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.12-2.5 mm² | |
| Colour | orange | |
| Pin number | 22 pole | |
| Assembly | THT | |
| Height | 22.7 mm | |
| Depth | 14.8 mm | |
| Connection | spring-clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
