1331330000 | Weidmüller

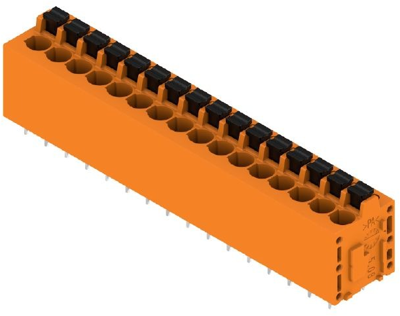

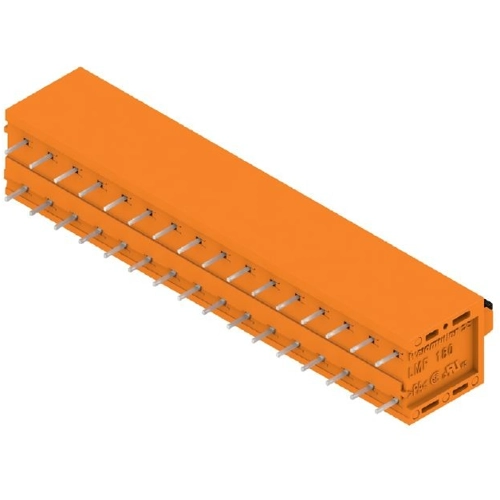

PCB terminal, 16 pole, pitch 5.08 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331330000
Order No.: 51P1468
EAN: 4050118135152
MPN:
1331330000
LMF 5.08/16/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
7.2471 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
7.25 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2471 €
10 pcs.
6.7235 €
50 pcs.
6.1285 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1331330000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 16, 180°, 3.5 mm, orange, PUSH IN, 2.5 mm², Box
Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
Technical specifications
| Colour | orange | |
| Depth | 14.8 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 20 A | |
| Grid | 5.08 mm | |
| Width | 83.9 mm | |
| Height | 22.7 mm | |
| Cable cross-section | 0.12-2.5 mm² | |
| Pin number | 16 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
