1330430000 | Weidmüller

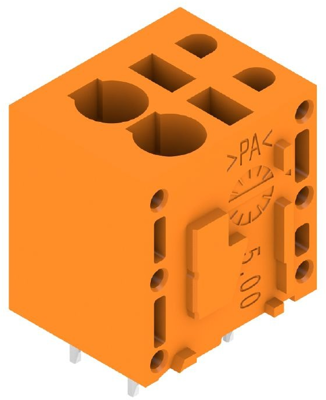

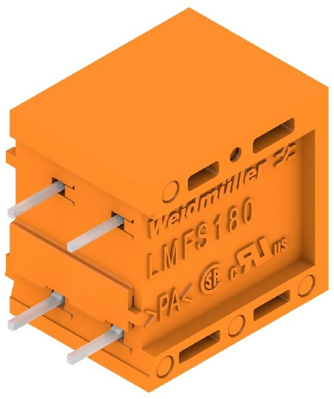

PCB terminal, 2 pole, pitch 5 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1330430000
Order No.: 51P1397
EAN: 4050118134537
MPN:
1330430000
LMFS 5.00/02/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Available in 6 Days: 260 pcs.
Leadtime: On Request **
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
2 pcs.
0.8449 €
650 pcs.
0.7616 €
3250 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1330430000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 2, 180°, 3.5 mm, orange, PUSH IN without actuator, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 12.7 mm | |
| Colour | orange | |
| Height | 18.7 mm | |
| Cable cross-section | 0.12-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Depth | 14.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
