1251410000 | Weidmüller

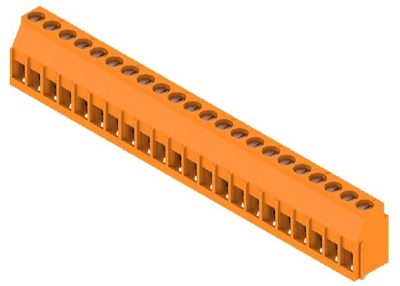

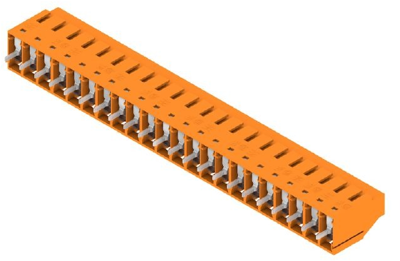

PCB terminal, 22 pole, pitch 5 mm, AWG 26-12, 20 A, screw connection, orange, 1251410000
Order No.: 50P9667
EAN: 4050118042801
MPN:
1251410000
LL 5.00/22/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
11.5668 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
11.57 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5668 €
10 pcs.
10.7576 €
50 pcs.
9.7937 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1251410000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 22, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 22.75 mm | |
| Colour | orange | |
| Height | 14.2 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 22 pole | |
| Grid | 5 mm | |
| Depth | 11 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
