1234670000 | Weidmüller

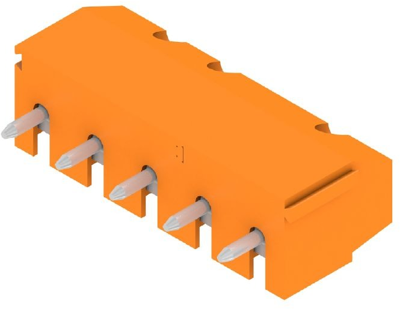

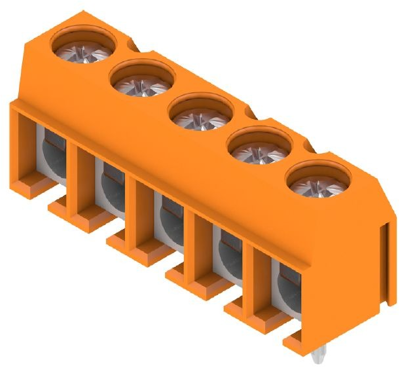

PCB terminal, 5 pole, pitch 5 mm, AWG 26-14, 15 A, screw connection, orange, 1234670000
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
2 pcs.
0.7735 €
500 pcs.
0.7021 €
2500 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1234670000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 5, 90°, 3.5 mm, orange, pressure clip connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 25.6 mm | |
| Colour | orange | |
| Height | 13.5 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Depth | 8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
