1234630000 | Weidmüller

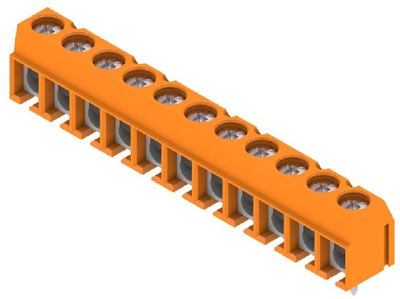

PCB terminal, 11 pole, pitch 5.08 mm, AWG 26-14, 15 A, screw connection, orange, 1234630000
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5589 €
50 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1234630000, Weidmüller
PCB terminal, 5.08 mm, pole number: 11, 90°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 56.48 mm | |
| Colour | orange | |
| Pin number | 11 pole | |
| AWG cross-section | AWG 26-14 | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Height | 13.5 mm | |
| Rated current | 15 A | |
| Cable cross-section | 0.13-2.5 mm² | |
| Grid | 5.08 mm | |
| Depth | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
