1226560000 | Weidmüller

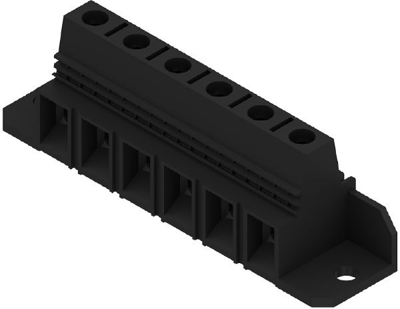

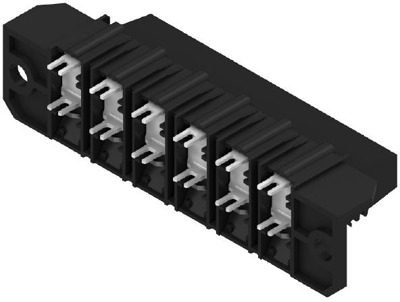

PCB terminal, 6 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 1226560000
Order No.: 50P9087
EAN: 4050118011296
MPN:
1226560000
LXB 15.00/06/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LX
Unit Price (€ / pc.)
22.4553 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Print clamp, 1226560000, Weidmüller
PCB terminal, 15.00 mm, no. of poles: 6, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

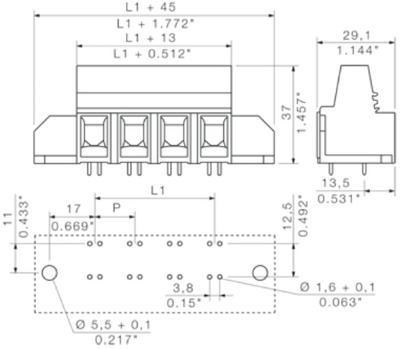

Technical specifications
| Colour | black | |
| Depth | 41.5 mm | |
| AWG cross-section | AWG 16-4 | |
| Rated current | 85 A | |
| Grid | 15 mm | |
| Width | 120 mm | |
| Height | 29.1 mm | |
| Cable cross-section | 1.31-25 mm² | |
| Pin number | 6 pole | |
| Connection | screw connection | |
| Rated voltage | 600 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
