1226540000 | Weidmüller

PCB terminal, 4 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 1226540000

Order No.: 50P9085
EAN: 4050118011289
MPN:
1226540000
LXB 15.00/04/90 4.5SN BK BX

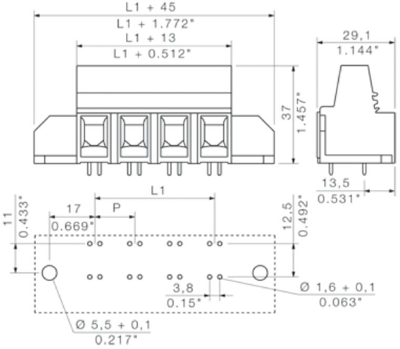

1226540000 Weidmüller PCB Terminal Blocks Image 1

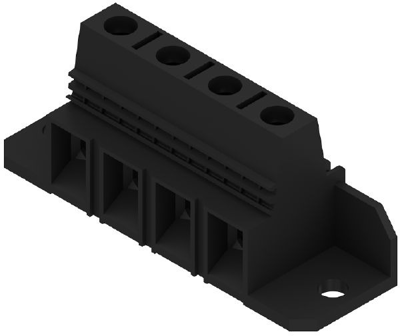

1226540000 Weidmüller PCB Terminal Blocks Image 2

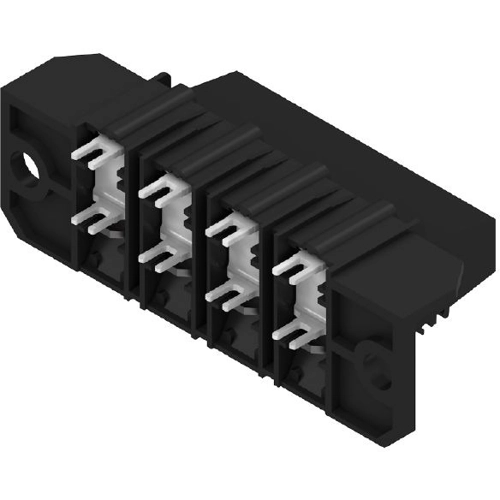

1226540000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
15.0178 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
15.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.0178 €

Print clamp, 1226540000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 4, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 90 mm
Grid 15 mm
AWG cross-section AWG 16-4
Rated current 85 A
Rated voltage 600 V
Cable cross-section 1.31-25 mm²
Colour black
Pin number 4 pole
Assembly THT
Height 29.1 mm
Depth 41.5 mm
Connection screw connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
