1226520000 | Weidmüller

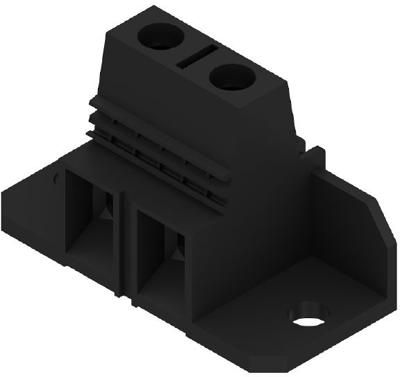

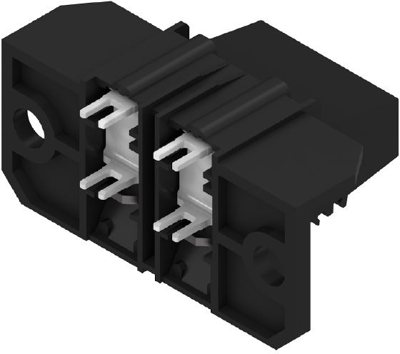

PCB terminal, 2 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 1226520000
Order No.: 50P9083
EAN: 4050118011272
MPN:
1226520000
LXB 15.00/02/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LX
Unit Price (€ / pc.)
10.4958 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
10.50 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4958 €
10 pcs.
9.7580 €
50 pcs.
8.8774 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1226520000, Weidmüller
PCB terminal, 15.00 mm, no. of poles: 2, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

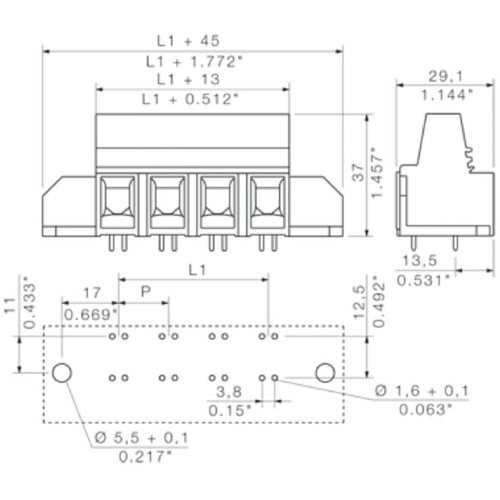

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 15 mm | |
| Assembly | THT | |
| Colour | black | |
| Depth | 41.5 mm | |
| Cable cross-section | 1.31-25 mm² | |
| Rated current | 85 A | |
| Height | 29.1 mm | |
| Pin number | 2 pole | |
| AWG cross-section | AWG 16-4 | |
| Connection | screw connection | |
| Rated voltage | 600 V | |
| Width | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
