1226460000 | Weidmüller

PCB terminal, 1 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 1226460000

Order No.: 50P9077
EAN: 4050118011098
MPN:
1226460000
LX 15.00/01/90 4.5SN BK BX

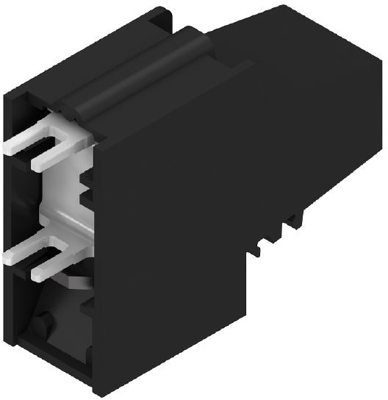

1226460000 Weidmüller PCB Terminal Blocks Image 1

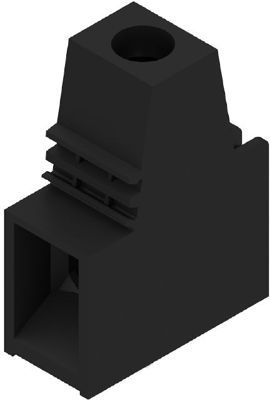

1226460000 Weidmüller PCB Terminal Blocks Image 2

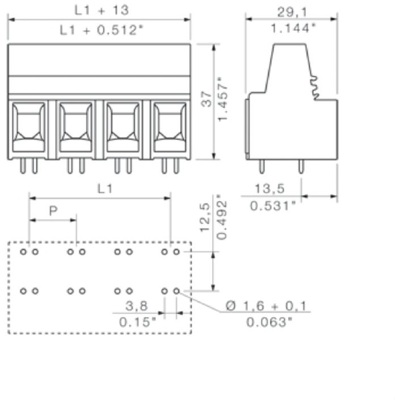

1226460000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
6.2118 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
6.21 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2118 €
10 pcs.
5.7715 €
50 pcs.
5.2479 €
*incl. VAT plus shipping costs
Subject to prior sale

Print clamp, 1226460000, Weidmüller

PCB terminal, 15.00 mm, pole number: 1, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 13 mm
Grid 15 mm
AWG cross-section AWG 16-4
Rated current 85 A
Rated voltage 600 V
Cable cross-section 1.31-25 mm²
Colour black
Pin number 1 pole
Assembly THT
Height 41.5 mm
Depth 29.1 mm
Connection screw connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
