1226270000 | Weidmüller

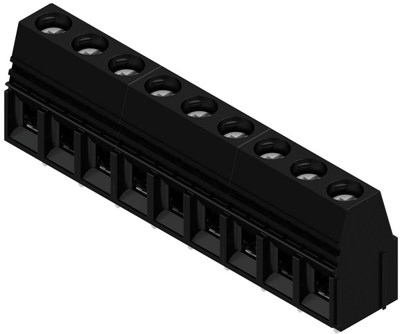

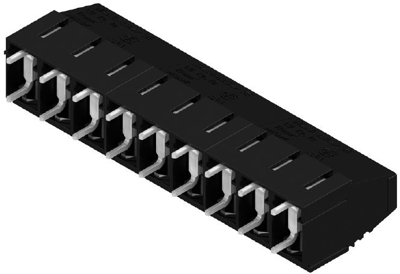

PCB terminal, 9 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, black, 1226270000
Order No.: 50P9065
EAN: 4050118010664
MPN:
1226270000
LU 10.16/09/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LU
Unit Price (€ / pc.)
44.6607 € *
Available in 5 Days: 18 pcs. - if ordered today
Print clamp, 1226270000, Weidmüller
PCB terminal, 10.16 mm, no. of poles: 9, 90°, 4.5 mm, black, clamping yoke connection, 16 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

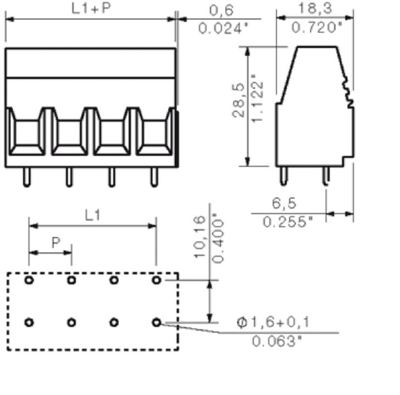

Technical specifications
| Connection | screw connection | |
| Height | 33 mm | |
| Grid | 10.16 mm | |
| Rated voltage | 300 V | |
| Depth | 18.3 mm | |
| Width | 91.44 mm | |
| Colour | black | |
| Cable cross-section | 0.14-16 mm² | |
| AWG cross-section | AWG 22-8 | |
| Pin number | 9 pole | |
| Rated current | 65 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
