1226260000 | Weidmüller

PCB terminal, 8 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, black, 1226260000

Order No.: 50P9064
EAN: 4050118010671
MPN:
1226260000
LU 10.16/08/90 4.5SN BK BX

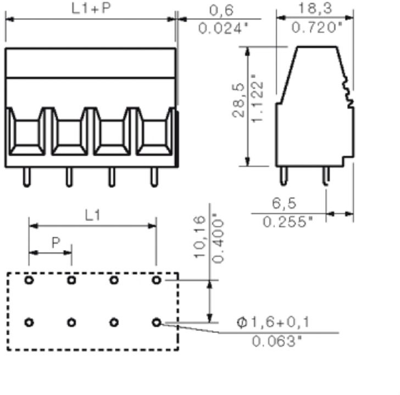

1226260000 Weidmüller PCB Terminal Blocks Image 1

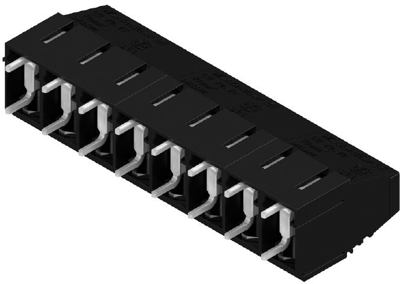

1226260000 Weidmüller PCB Terminal Blocks Image 2

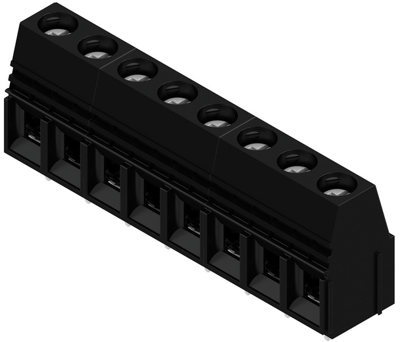

1226260000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
18.0285 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
18.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.0285 €

Print clamp, 1226260000, Weidmüller

PCB terminal, 10.16 mm, no. of poles: 8, 90°, 4.5 mm, black, clamping yoke connection, 16 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Depth 18.3 mm
Grid 10.16 mm
Assembly THT
Connection screw connection
Rated current 65 A
Pin number 8 pole
Width 81.28 mm
Height 33 mm
AWG cross-section AWG 22-8
Colour black
Rated voltage 300 V
Cable cross-section 0.14-16 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
