1226230000 | Weidmüller

PCB terminal, 5 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, black, 1226230000

Order No.: 50P9061
EAN: 4050118010732
MPN:
1226230000
LU 10.16/05/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LU
Weidmüller

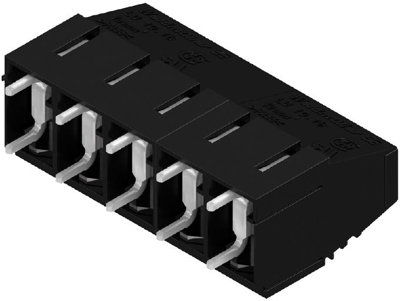

1226230000 Weidmüller PCB Terminal Blocks Image 1

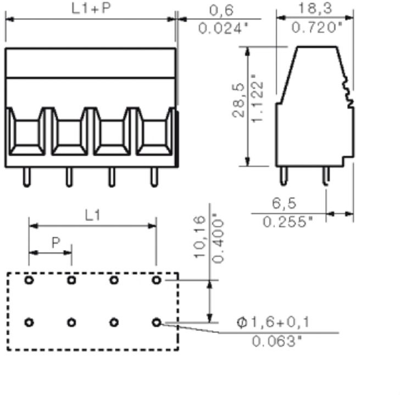

1226230000 Weidmüller PCB Terminal Blocks Image 2

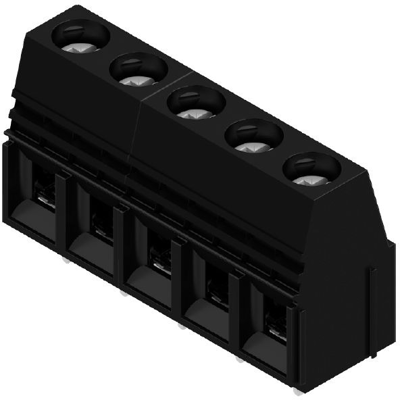

1226230000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Print
Key Specification:
Pin number 5 pole
Grid 10.16 mm
Cable cross-section 0.14-16 mm²
AWG cross-section AWG 22-8
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.3764 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
11.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.3764 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 1226230000, Weidmüller

PCB terminal, 10.16 mm, no. of poles: 5, 90°, 4.5 mm, black, clamping yoke connection, 16 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Depth 18.3 mm
Grid 10.16 mm
AWG cross-section AWG 22-8
Connection screw connection
Assembly THT
Pin number 5 pole
Cable cross-section 0.14-16 mm²
Rated voltage 300 V
Rated current 65 A
Height 33 mm
Colour black
Width 50.8 mm
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
