1192990000 | Weidmüller
PCB terminal, 3 pole, pitch 10.16 mm, AWG 22-6, 51 A, screw connection, black, 1192990000
Order No.: 50P7938
EAN: 4032248975051
MPN:
1192990000
LUP 10.16/03/90V 3.2SN BK BX
Series: OMNIMATE Power - Serie LUP
Unit Price (€ / pc.)
11.4002 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
11.40 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4002 €
10 pcs.
10.5910 €
50 pcs.
9.6509 €
*incl. VAT plus shipping costs
Subject to prior sale

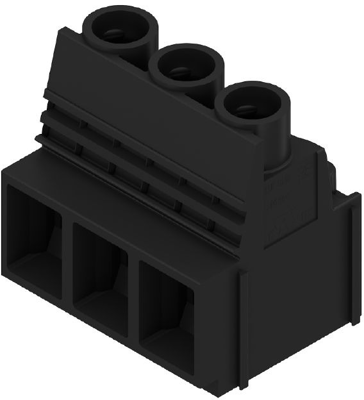

Print clamp, 1192990000, Weidmüller
PCB terminal, 10.16 mm, pole number: 3, 90°, 3.2 mm, black, clamping yoke connection, 16 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

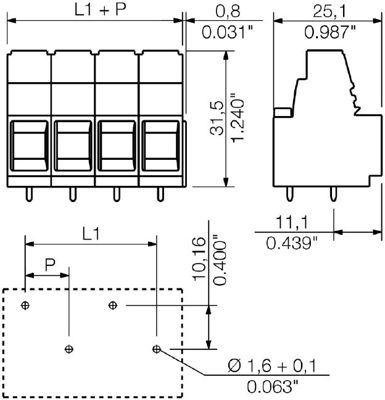

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.13-16 mm² | |
| AWG cross-section | AWG 22-6 | |
| Rated current | 51 A | |
| Width | 31.28 mm | |
| Connection | screw connection | |
| Depth | 25.1 mm | |
| Pin number | 3 pole | |
| Height | 34.7 mm | |
| Rated voltage | 600 V | |
| Grid | 10.16 mm | |
| Colour | black | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
