1137880000 | Weidmüller
PCB terminal, 1 pole, AWG 26-14, 13 A, screw connection, black, 1137880000
Order No.: 50P6741
EAN: 4032248919734
MPN:
1137880000
LHZ-SMT R 1.5SN BK BX
Series: OMNIMATE Housing - Serie CH20M6
Unit Price (€ / pc.)
1.3804 € *
Available in 6 Days: 1,530 pcs. - if ordered today

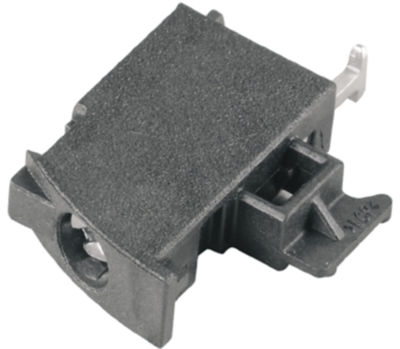

Print clamp, 1137880000, Weidmüller
PCB terminal, connection element right, number of poles: 1, 90°, 1.5 mm, black, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-14 | |
| Colour | black | |
| Connection | screw connection | |
| Rated voltage | 500 V | |
| Cable cross-section | 2.5 mm² | |
| Width | 6 mm | |
| Height | 16.9 mm | |
| Assembly | THR | |
| Pin number | 1 pole | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
