1047440000 | Weidmüller

PCB terminal, 1 pole, pitch 15 mm, AWG 20-1, 127 A, screw connection, black, 1047440000

Order No.: 50P3856
EAN: 4032248783717
MPN:
1047440000
LXXX 15.00/01/90FL 4.5SN BK BX

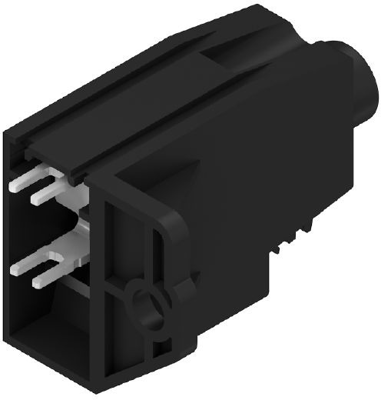

1047440000 Weidmüller PCB Terminal Blocks Image 1

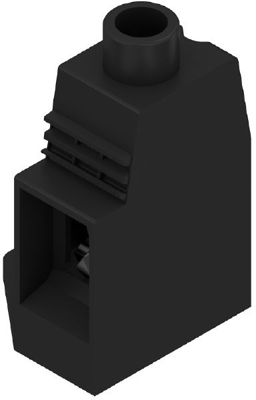

1047440000 Weidmüller PCB Terminal Blocks Image 2

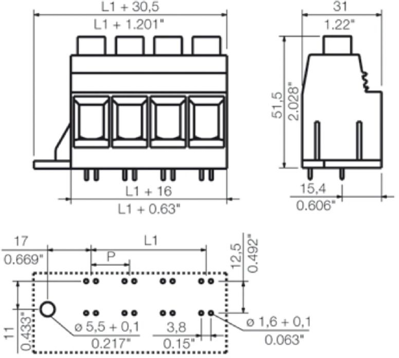

1047440000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
5.9619 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5.96 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9619 €
10 pcs.
5.5335 €
50 pcs.
5.0337 €
*incl. VAT plus shipping costs
Subject to prior sale

Print clamp, 1047440000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 1, 90°, 4.5 mm, black, clamping yoke connection, 50 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 30.5 mm
Grid 15 mm
AWG cross-section AWG 20-1
Rated current 127 A
Rated voltage 600 V
Cable cross-section 0.5-50 mm²
Colour black
Pin number 1 pole
Assembly THT
Height 56 mm
Depth 31 mm
Connection screw connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
