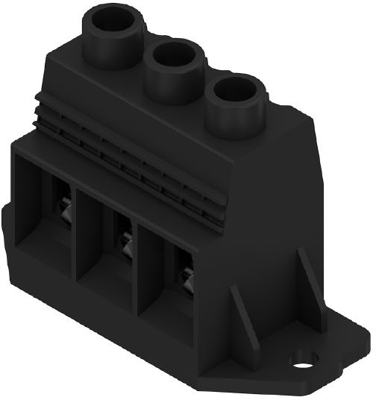

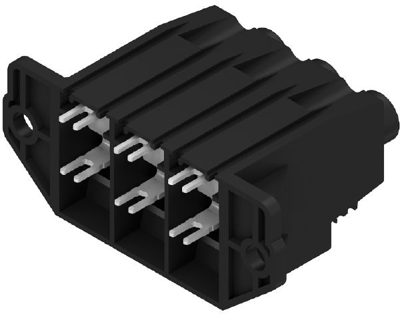

1047300000 | Weidmüller
PCB terminal, 3 pole, pitch 15 mm, AWG 20-1, 127 A, screw connection, black, 1047300000
Order No.: 50P3850
EAN: 4032248783854
MPN:
1047300000
LXXX 15.00/03/90F 4.5SN BK BX
Series: OMNIMATE Power - Serie LXXX
Unit Price (€ / pc.)
16.2435 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
16.24 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2435 €
10 pcs.
14.9464 €
50 pcs.
13.6017 €
100 pcs.
12.2451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1047300000, Weidmüller
PCB terminal, 15.00 mm, no. of poles: 3, 90°, 4.5 mm, black, clamping yoke connection, 50 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Colour | black | |
| Depth | 31 mm | |
| AWG cross-section | AWG 20-1 | |
| Rated current | 127 A | |
| Grid | 15 mm | |
| Width | 75 mm | |
| Height | 56 mm | |
| Cable cross-section | 0.5-50 mm² | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Rated voltage | 600 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
