1001940000 | Weidmüller

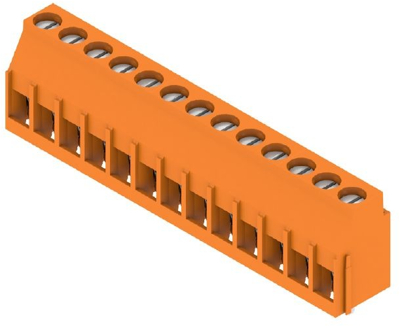

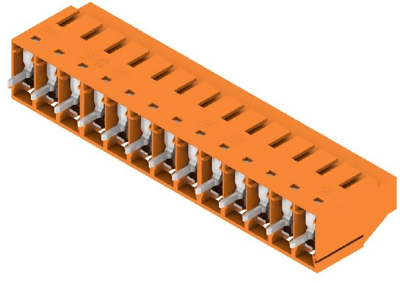

PCB terminal, 13 pole, pitch 5.08 mm, AWG 26-12, 20 A, clamping bracket, orange, 1001940000
Order No.: 50P2134
EAN: 4032248693900
MPN:
1001940000
LL 5.08/13/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
6.8425 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
10 pcs.
6.3665 €
50 pcs.
5.7953 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1001940000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 13, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | clamping bracket | |
| AWG cross-section | AWG 26-12 | |
| Width | 66.69 mm | |
| Colour | orange | |
| Height | 20.3 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 13 pole | |
| Grid | 5.08 mm | |
| Depth | 11 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
