1001860000 | Weidmüller

PCB terminal, 5 pole, pitch 5.08 mm, AWG 26-12, 20 A, clamping bracket, orange, 1001860000

Order No.: 50P2126
EAN: 4032248693825
MPN:
1001860000
LL 5.08/05/90 3.2SN OR BX
Weidmüller

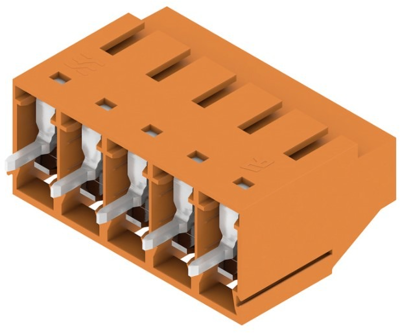

1001860000 Weidmüller PCB Terminal Blocks Image 1

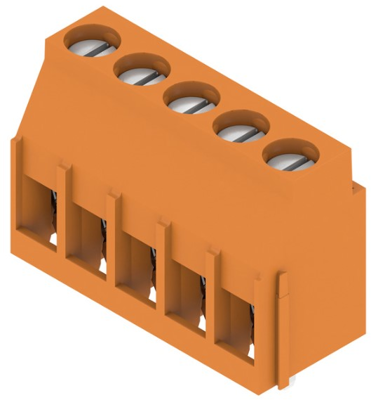

1001860000 Weidmüller PCB Terminal Blocks Image 2
1001860000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Available in 6 Days: 132 pcs.
Leadtime: On Request **
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
10 pcs.
2.6061 €
50 pcs.
2.3681 €
*incl. VAT plus shipping costs
**Subject to prior sale

Print clamp, 1001860000, Weidmüller

PCB terminal, 5.08 mm, no. of poles: 5, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Connection clamping bracket
AWG cross-section AWG 26-12
Width 26.05 mm
Colour orange
Height 20.3 mm
Cable cross-section 0.08-6.0 mm²
Rated voltage 300 V
Rated current 20 A
Pin number 5 pole
Grid 5.08 mm
Depth 11 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
