0642460000 | Weidmüller

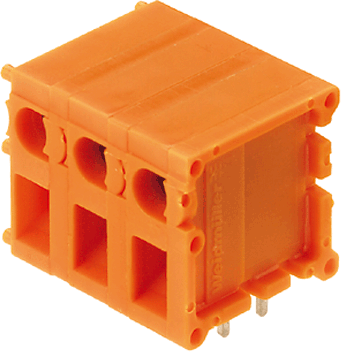

PCB terminal, 8 pole, pitch 7.62 mm, AWG 26-14, 10 A, screw connection, orange, 0642460000
Order No.: 50P1754
EAN: 4008190134242
MPN:
0642460000
TOP1.5GS8/90 7 2STI OR
Series: OMNIMATE Signal - Serie TOP1.5GS
Unit Price (€ / pc.)
5.0575 € *
Available in 5 Days: 80 pcs. - if ordered today
Print clamp, 0642460000, Weidmüller
PCB terminal, 7.62 mm, no. of poles: 8, 90°, 3.5 mm, orange, TOP connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

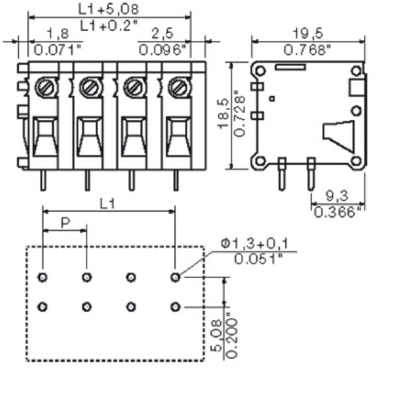

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-14 | |
| Colour | orange | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-2.5 mm² | |
| Width | 62.76 mm | |
| Height | 22 mm | |
| Assembly | THT | |
| Depth | 19.5 mm | |
| Pin number | 8 pole | |
| Grid | 7.62 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
